JTL CF CONDENSORFAN STEPCONTROLLER STAPPENREGELAAR
0224-850552
06-52634163

Stand alone or networked product
Five control steps per board
No limit to total number of steps controlled
Balanced run hours
Anti-short cycle protection
Accepts input from dead zone pressure switch
Set up parameters maintained for restart

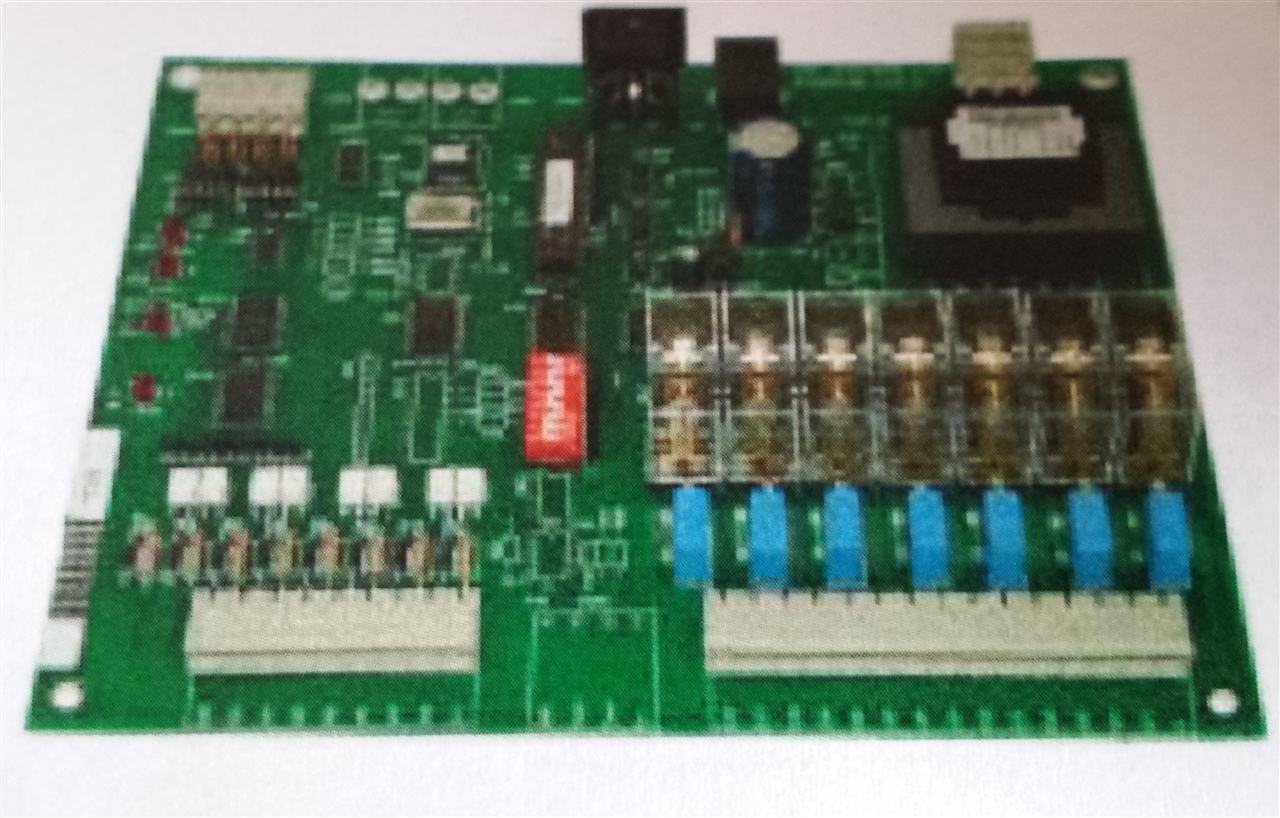

The CF110 condenser step controller can operate up to 5 stages of condenser
control according to the increase/decrease signal from a dead-zone pressure
switch. Any number of CF110 controllers can be cascaded, allowing an unlimited
number of stages to be controlled by a single dead-zone switch.

Each controlled stage has an associated run signal input; if no run signal is received
from the fan within 10 seconds of the run instruction being passed by the
controller then an alarm is generated on the JTL network.
An auto-run input is available on the CF110 controller, removal of the auto-run
signal will cause the controller to pass control to the back-up circuit within the
main control panel.

operating within a JTL network, operating parameters and alarm settings can be
viewed and adjusted remotely.
